FCM-P-21 Crescent Bar Pull
FCM-P-21 Crescent Bar Pull
DETAILS

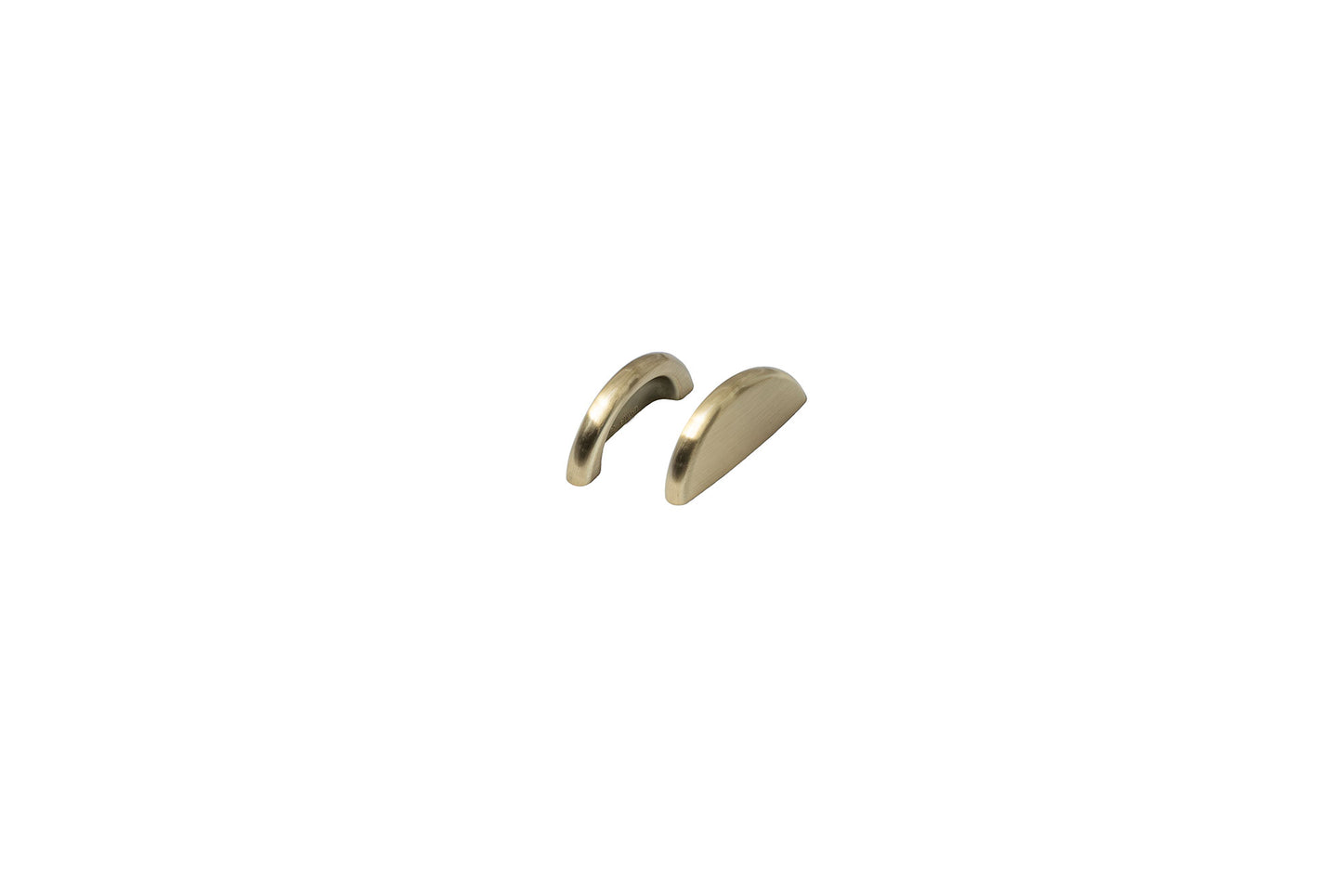

Our FCM-P-21 Crescent Pull has a soft flat surface with a gentle radius that turns into a perfectly rolled front detail that is a full 1/4" thick. Our standard finishes are based on the most popular requests but any custom finish can be achieved on this quality material. With a smooth wide surface, this pull is a real beauty. We polish and plate or powder coat in any finish you require.

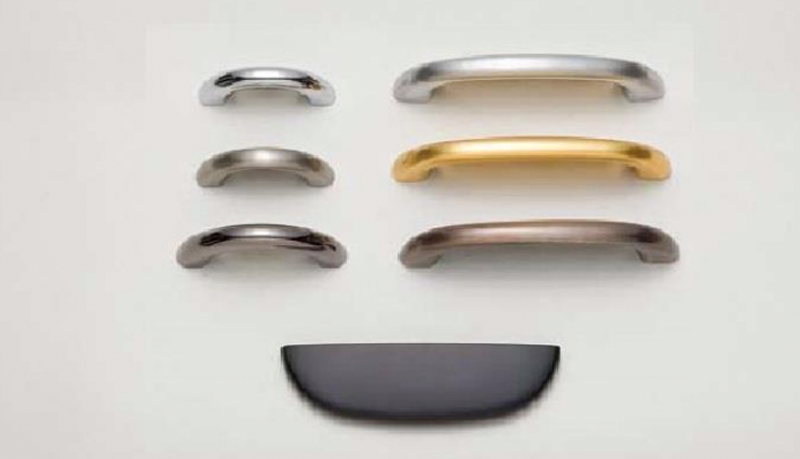

FINISHED IN MATTE BLACK, SATIN CHROME, POLISH CHROME, SATIN NICKEL, BLACK NICKEL, SATIN BRASS
Please contact us for further information on pricing and lead times.

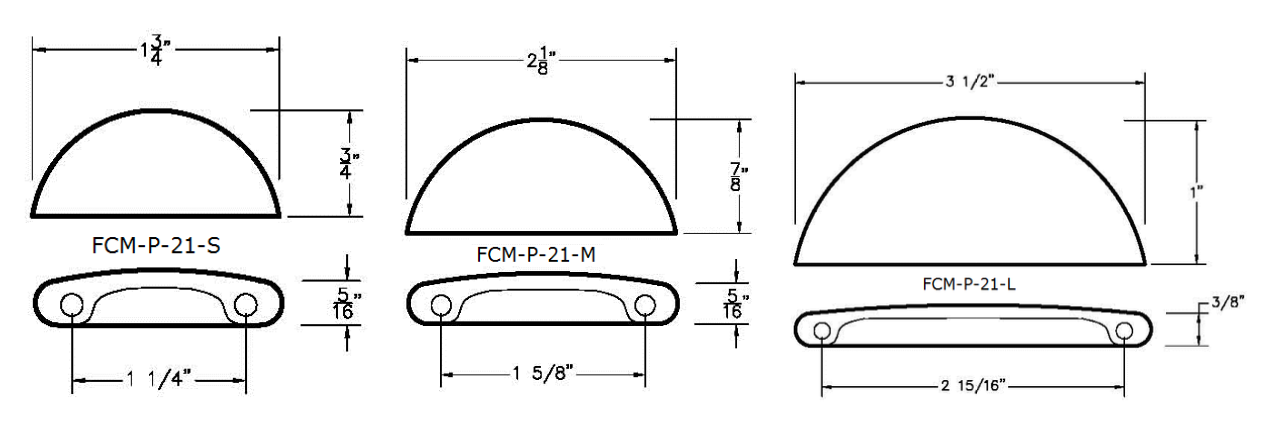

Installation Notes and Technical Drawing:
| Price List | Installation Sheet | TechnicalDrawing |
 |
| FCM P-21 CRESCENT BAR PULL | MATTE BLACK SATIN CHROME POLISH CHROME | MATTE BLACK SATIN CHROME POLISH CHROME | MATTE BLACK SATIN CHROME POLISH CHROME | SATIN NICKEL BLACK NICKEL SATIN BRASS | SATIN NICKEL BLACK NICKEL SATINBRASS | SATIN NICKEL BLACK NICKEL SATIN BRASS | ||||
| Medium Antique Bronze: Add 5.50 to Satin Nickel Category. | ||||||||||
| PART NUMBER |
Overall Length |
Hole Location CTC |
Depth | Projection | 1-99 | 100-499 | 500-999 | 1-99 | 100-499 | 500-999 |
| FCM-P-21-S | 1-3/4” | 1-1/4” | 3/4” | 5/16” | $5.40 | $5.20 | $5.00 | $6.00 | $5.85 | $5.50 |
| FCM-P-21-M | 2-1/8” | 1-5/8” | 7/8” | 5/16” | $6.50 | $6.30 | $6.00 | $7.25 | $7.15 | $7.00 |
| FCM-P-21-L | 3-1/2” | 15/16” | 1” | 3/8” | $7.50 | $7.30 | $7.00 | $8.10 | $7.99 | $7.70 |
