DUE TO CURRENT SUPPLY ISSUES, MATERIAL COST FLUCTUATES. PLEASE CONTACT US TO CONFIRM PRICING
FC MetalFC MetalFC Metal

FCM-OEB-625-STRAIGHT LOOP BASE TUBULAR

$500.00

Maximum Top Size: Choose an option

  • 30"
  • 36"
  • 42"
  • 48"
  • 54"
  • 60"

Finish: Choose an option

  • Matte Black Silver
  • Blackened Steel
  • Polish Chrome
  • Satin Nickel
  • Satin Chrome
  • White
$500.00
Out of stock

Heavy granite, dense wood slab, or oversize tops require heavier material and added gussets for correct support

Top plates are flush with length of base unless otherwise requested. Top plates are centered on base but can be offset at your request.

FCM LOOP BASE WITH OR WITHOUT ACCESS HOLES: SPECIFICATIONS: Standard Height: 28”

Fabrication Lead Time: Powder Coated = 5 weeks. Plated = 6 Weeks.

Our FCM tubular version, open style base is designed as an option to our solid bar base, both for its design detail and to give you hidden cord access area that is not possible on our solid bar version.

Heavy granite, dense wood slab, or oversize tops require heavier material and added gussets for correct support. Please call for additional price on your size requirement.

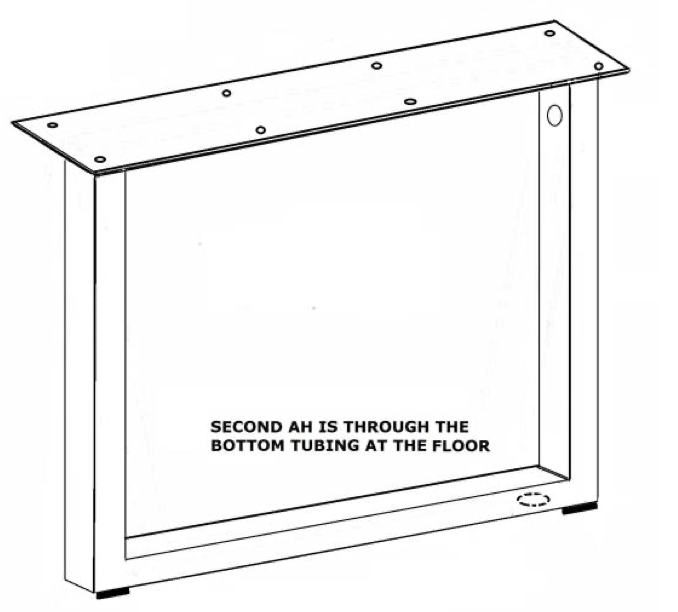

When access holes are the option you need, we have strategically hidden the holes as much as possible. With (1) 2” round access (AH) hole on the inside wall only, 1” from the top plate and (1) 2” AH on the bottom side of the tubing at the floor, (facing the floor),
so that the outside of your base stays undisturbed and free from holes or cords.

Fabricated out of 1-1/2” x 3 rectangular tubing,
with crisp details, and highly finished to your specifications. (2) levelers at bottom on the end base style.
(4) levelers on the X base style

Open-End Base Height Modifications

Shorter: powder coated or plated, same price.
Taller up to 40.5: powder coated: add-on $95.00 Plated add-on $115.00

Open-X Base Height Modifications

Shorter: powder coated or plated, same price.
Taller up to 40.5: powder coated: add-on $125.00 Plated add-on $175.00

Add-on for Access Hole: $40.00 per hole. (AH)

Our standard hole size on this base is 2

SPECIAL NOTE:
Polish and Satin Chro
me may leave minimal ‘shadowing’ on inside corners due to plating anomalies. Nickel does not leave this ‘shadowing’.

Additional Sizes and Modifications are available for your heavy granite, marble or thicker, dense wood slab tops, heavier material will be used on any of these base designs Please call for quote.

Please specify finish when placing order:
Matte Black (MB). Silver (SV). White (WH). Satin Chrome (SC) Polish Chrome (PC) Satin Nickel (SN) Blackened Steel (BS)

Additional Sizes and Finishes are available. Quantity discounts are available.

  Maximum Top Size Matte Black Silver or White Satin Chrome Polish Chrome Satin Nickel Blackened Steel
Item Number Base Size
FCM-OEB-625-18X28H
18”W x 28”H
30” Wide $500 $605 $700 $700 $800
FCM-OEB-625-24X28H
24”W x 28” H
36” Wide $515 $635 $728 $728 $820
FCM-OEB-625-30X28H
30”W x 28”H
42” Wide $548 $650 $745 $740 $833
FCM-OEB-625-36X28H
36”W x 28” H
48” Wide $545 $759 $788 $788 $865
FCM-OEB-625-42X28H
42”W x 28” H
54” Wide $583 $769 $798 $798 $885
FCM-OEB-625-48X28H
48”W x 28” H
60” Wide $620 $780 $819 $819 $948

Please contact us for further information on pricing and lead times.

Installation Notes and Technical Drawing:

Price List  Installation Sheet TechnicalDrawing



Maximum Top Size

30", 36", 42", 48", 54", 60"

Finish

Matte Black Silver, Blackened Steel, Polish Chrome, Satin Nickel, Satin Chrome, White
