FC Metal
FCM-900 Base
FCM-900 Base
Please contact us for further information on pricing and lead times.
Installation Notes and Technical Drawing:
| Price List | Installation Sheet | TechnicalDrawing |
 |
FCM-900 PEDESTAL BASE SPECIFICATIONS: STANDARD HEIGHT IS 28”
**ALL TOP SIZES ARE BASED ON TYPICAL HEIGHT OF 28” WHEN INCREASING HEIGHT OVER 36” PLEASE GO UP ONE BASE SIZE.
** T-BASE: Add-On for special height shorter or taller up to 42” $49.00
** CROSS BASE: Add-On for special height shorter or taller up to 42” $99.00
** Multi-Column Cross Base: Add-On for special height shorter or taller up to 42” $150.00
**Add-On for Access hole (AH) in Column $40.00 per hole. Standard hole diameter is 2” on 3” column. Can modify at your request.
**Add-On for Dual Wheel Casters T-Base $100.00. 4 Way Base $125.00. Please specify (DWC). **Add-On for Flip Top Mechanism $145.00
**Automatic Discount 10 each = 5%. 20 each = 10%. **Additional quantity discounts are available **Additional Finishes are available.
Please contact us for further information on pricing and lead times.
Installation Notes and Technical Drawing:
| Price List | Installation Sheet | TechnicalDrawing |
|
|
| Maximum Top Size | Matte Black | Silver or White | Satin Chrome | Polish Chrome | Medium Antique Bronze | |||
| PEDESTAL SIZE | ||||||||
|

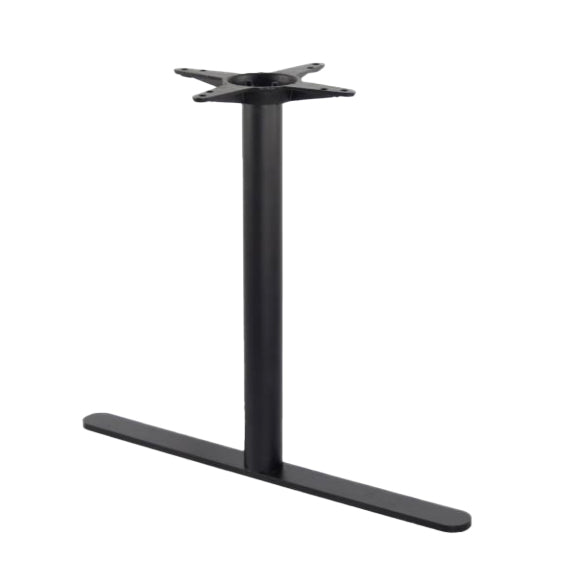

FCM-900-T-18x28H 18” Long-Single T |
24” x 96” | $183 | $208 | $218 | $228 | $258 | ||
|
FCM-900-T-24x28H 24” Long-Single T |
30” x 96” | $186 | $211 | $221 | $231 | $261 | ||
|
FCM-900-T-30x28H 30” Long-Single T |
36” x 96” | $190 | $215 | $225 | $235 | $265 | ||
|
FCM-900-T-36x28H 36” Long-Single T |
48” x 96” | $194 | $219 | $229 | $239 | $269 | ||
|
FCM-900-T-48x28H 48” Long-Single T |
54” x 96” | $199 | $224 | $234 | $259 | $289 | ||
| Less than 3 T-Bases add an additional 15% to above pricing. | ||||||||
|
FCM-900-2T-18x28H 18” Double Column-T |
24” x 96” | $222 | $247 | $257 | $267 | $297 | ||
|
FCM-900-2T-24x28H 24” Double Column-T |
30” x 96” | $226 | $251 | $261 | $271 | $301 | ||
|
FCM-900-2T-30x28H 30” Double Column-T |
36” x 96” | $229 | $254 | $264 | $274 | $304 | ||
|
FCM-900-2T-36x28H 36” Double Column-T |
48” x 96” | $232 | $257 | $267 | $277 | $307 | ||
|
FCM-900-2T-48x28H 48” Double Column-T |
54” x 96” | $245 | $270 | $284 | $295 | $330 | ||
| Less than 3 Double T-Bases add an additional 15% to above pricing. | ||||||||
| Top sizes above require a minimum of two bases, unless your top is bolted to a wall on one end. | ||||||||
| All T-Bases above have 2-1/2” diameter column. Foot is ½” thick x 2-1/2” wide. Includes 8” square top plates and levelers. | ||||||||
| PEDESTAL SIZE | Maximum Top Width | Matte Black | Silver or White | Satin Chrome | Polish Chrome | Medium Antique Bronze | ||
|
FCM-900-SQ18x28H 18” x 18” x 28” High |
24” x 24” | $237 | $262 | $300 | $320 | $360 | ||
|
FCM-900-SQ24x28H 24” x 24” x 28” High |
30” x 30” | $243 | $268 | $320 | $340 | $370 | ||
|
FCM-900-SQ30x28H 30” x 30” x 28” High |
36” x 36” | $250 | $275 | $330 | $350 | $380 | ||
|
FCM-900-SQ32x28H 32” x 32” x 28” High |
44” x 44” | $256 | $281 | $340 | $360 | $390 | ||
|
FCM-900-SQ36x28H 36” x 36” x 28” High |
48” x 48” | $274 | $293 | $360 | $380 | $410 | ||
|
All Above Square Spread Bases above have 3” diameter column. Foot is ½” thick x 3” wide. Includes 19” Cast Iron Spider and levelers. |
||||||||
|
FCM-900-SQ-HD-36x28H 36” x 36” x 28” High 3-1/2” Diameter Column |
54” x 54” | $306 | $331 | $390 | $410 | $440 | ||
|
FCM-900-SQ-HD-40x28H 40” x 40” x 28” High 3-1/2” Diameter Column |
60” x 60” | $319 | $344 | $399 | $419 | $459 | ||
|
HD-36 and HD-40 have 5/8” Thick foot with additional understructure for 54” & 60” tops. HD-36 and HD-30 also has an additional adjustable leveler centered under 3.5Rd column. |
||||||||
|
FCM-900-SQ48x4 (4) 1-3/4” Diameter Columns |
72” x 72” | $377 | $427 | $492 | $502 | $548 | ||
